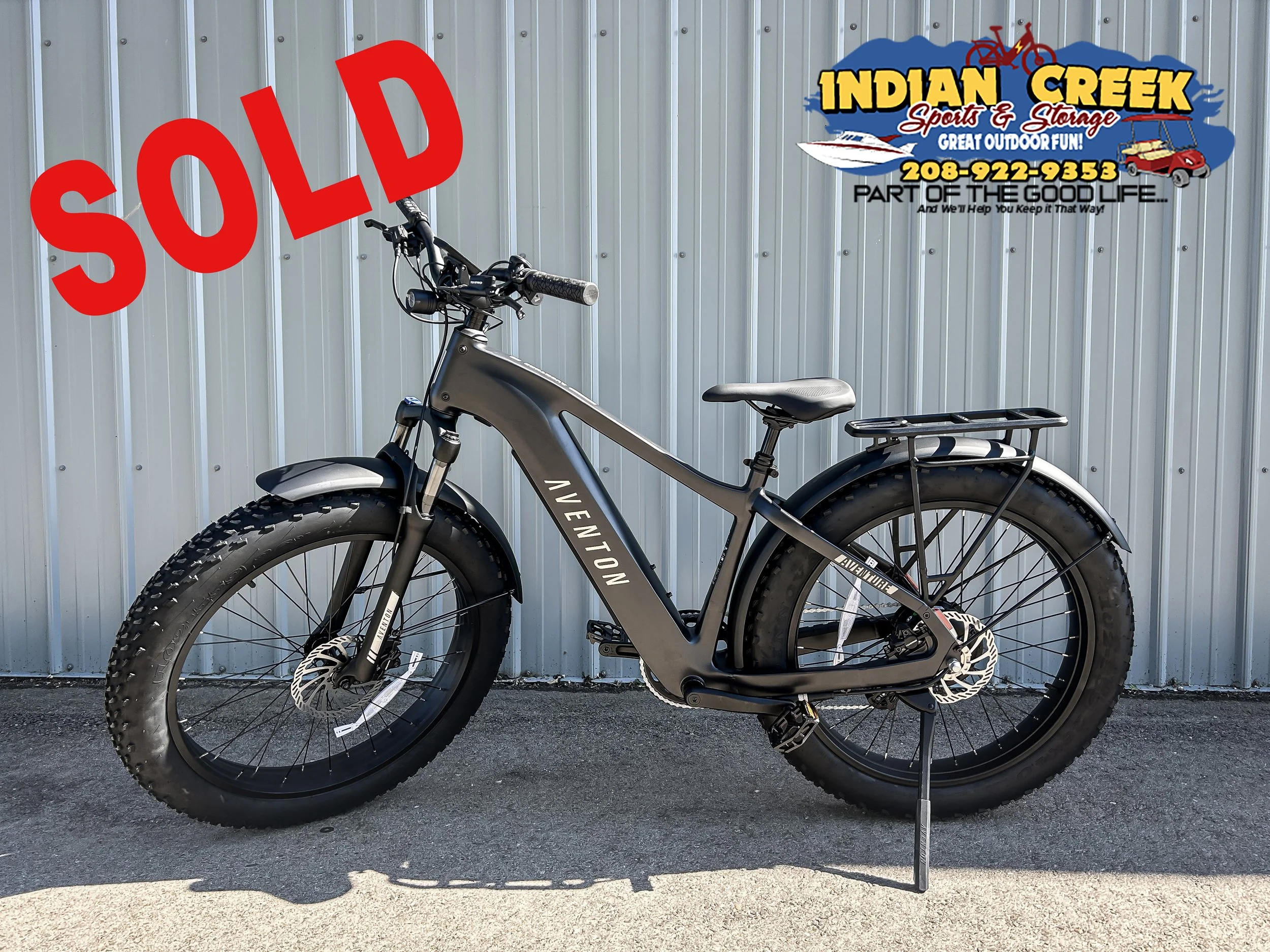

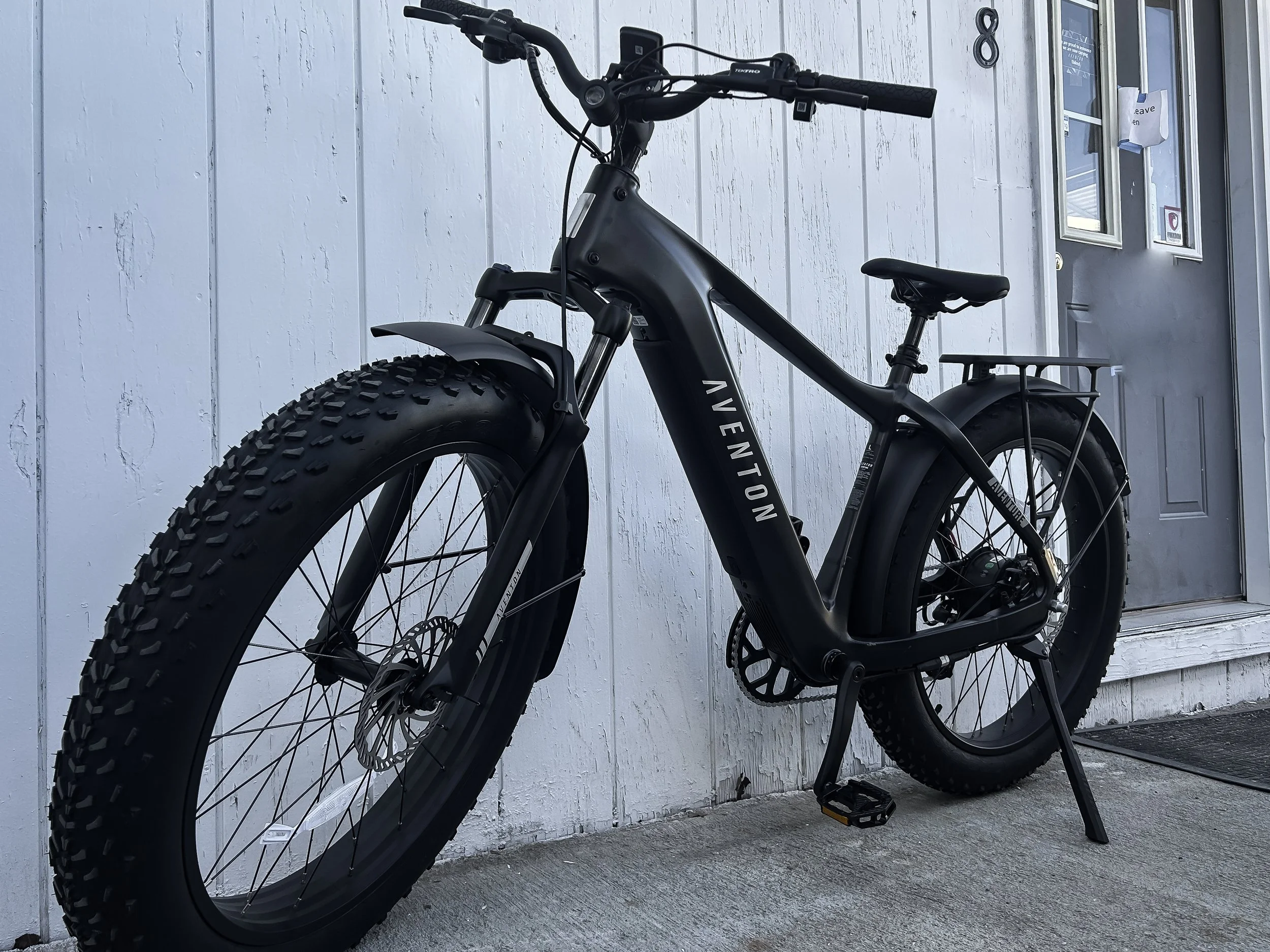

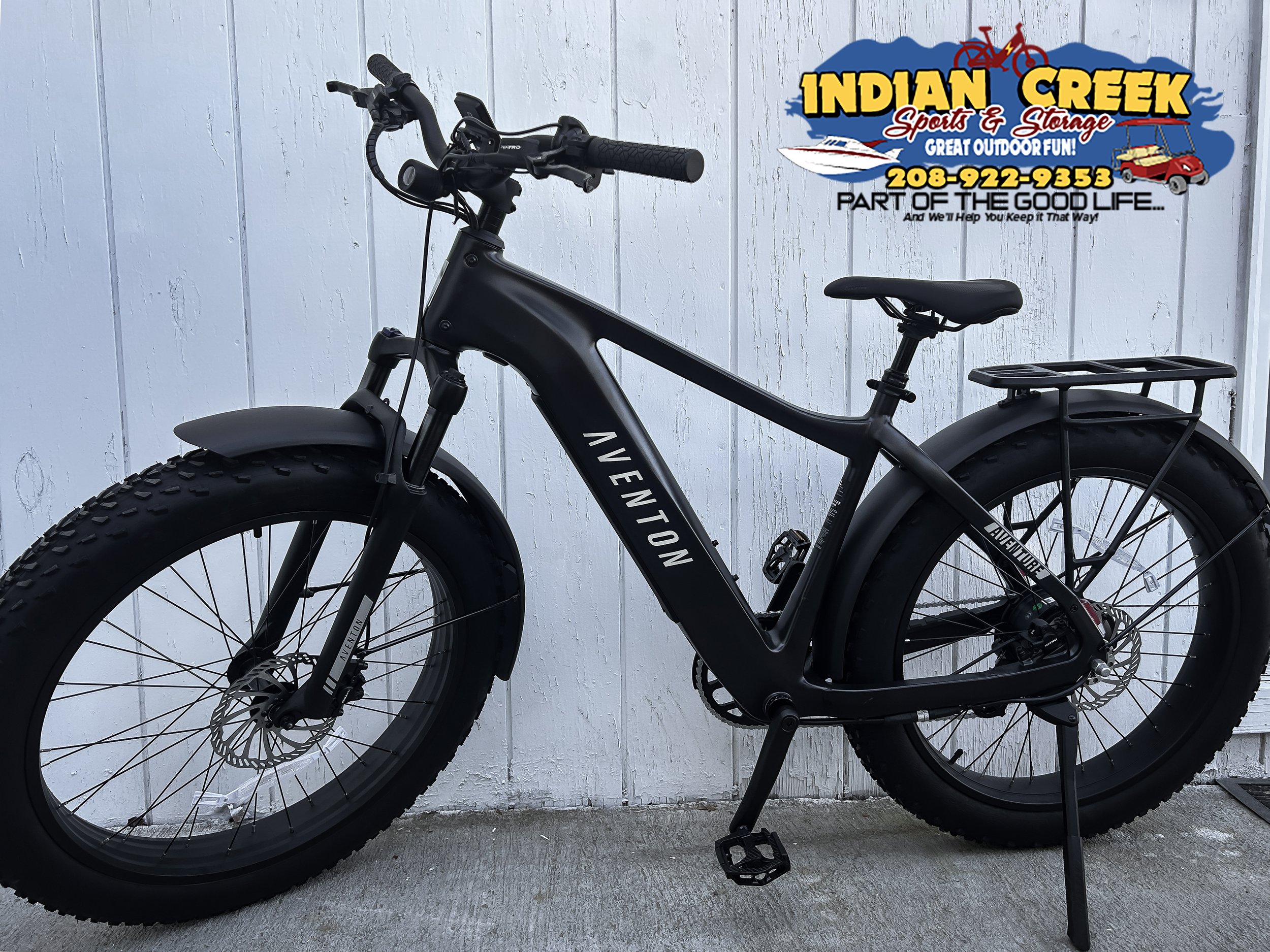

Aventon Aventure 3

• Size: Regular

• Color: Stealth

• Weight: 76 lbs

• Total Weight Limit: 400 lbs

• Ebike Class: Class 2 Ebike

• Water Resistance: IPX6

• Range: Up to 65 Miles

• Battery Safety Certifications: Certified to UL 2271

• Ideal Use: All-Terrain

• Bike Safety Certifications: UL Safety Certified
UL 2849

• Frame: 6061 Aluminum, Gravity Cast Front Triangle

• Fork: Aventon/Zoom Suspension Fork, 80mm Travel, with Lockout

• Rear Spacing: 190mm

• Fork Spacing: 135mm

• Frame Style: Step-Over

• Front Wheel: 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve

• Rear Wheel: 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve

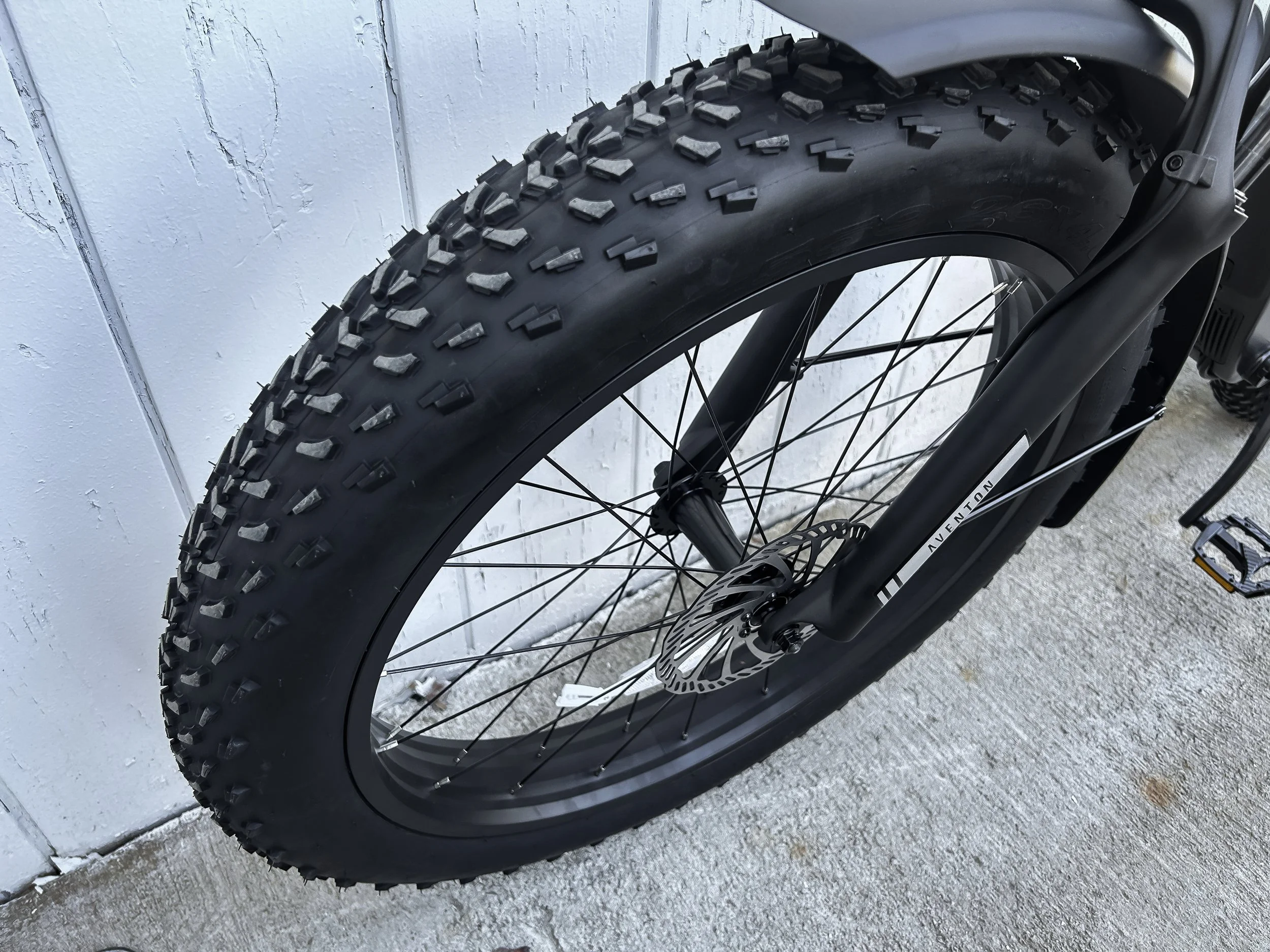

• Tires: Inova 26x4.0 Puncture Resistant

• Speed: Class 2

• Motor: 36V, 750W Hub Drive

• Motor Torque: 80Nm

• Motor Power: 750W (1188 Peak)

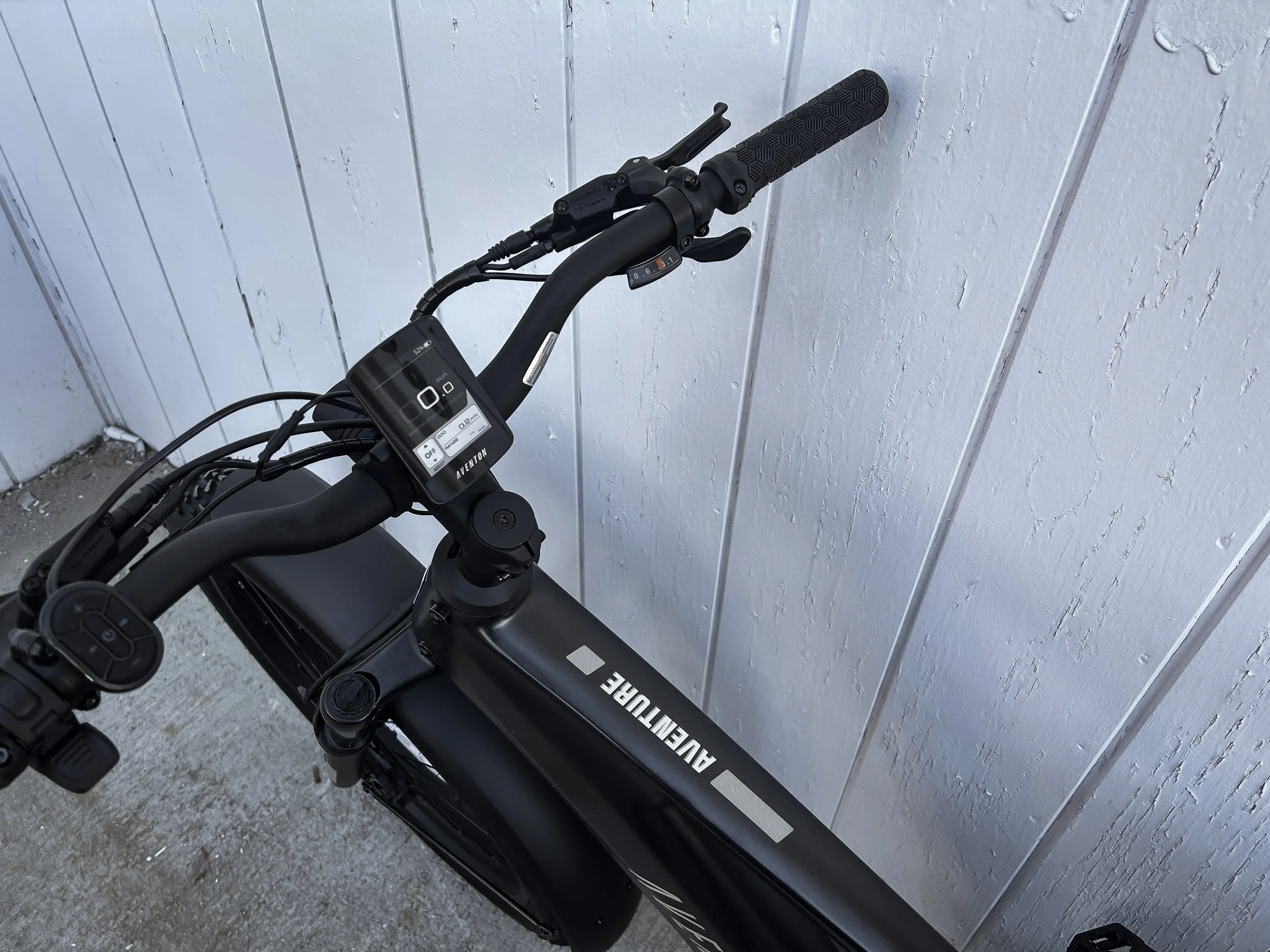

• Display: Aventon BC280

• Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 Cells

• Battery Weight: 8.7lbs

• Controller: 36V/33A

• Throttle: Aventon LH Handlebar Mounted

• Sensors: Double Sided Bottom Bracket Torque Sensor

• Charger: 36V Output: 42V/ 4A

• Charging Time from 0% to 100%: 5 Hours

• Lights: Front and Rear Lights Integrated

• Front Brake: Tektro HD-E3520 Hydraulic Disc Brakes w/ EJ1 Quick Disconnect Wire

• Rear Brake: Tektro HD-E3520 Hydraulic Disc Brakes w/ EJ1 Quick Disconnect Wire

• Front Brake Rotor: Tektro 180mm 6 Bolt

• Rear Brake Rotor: Tektro 180mm 6 Bolt

• Rear Derailleur: Shimano Altus 8-Speed

• Shifter: Shimano 8-Speed Trigger

• Chain: 7/8 Speed 118L

• Cassette: 12-32T / 8 Speed Shimano CS HG200-8

• Chainring: 48T

• Crankset: 3pc, 170mm Crank Arm

• Bottom Bracket: 100x177 Square Taper, Double Sided Torque Sensor Bottom Bracket

• Pedals: 9/16" Alloy Platform

• Saddle: Aventon Saddle

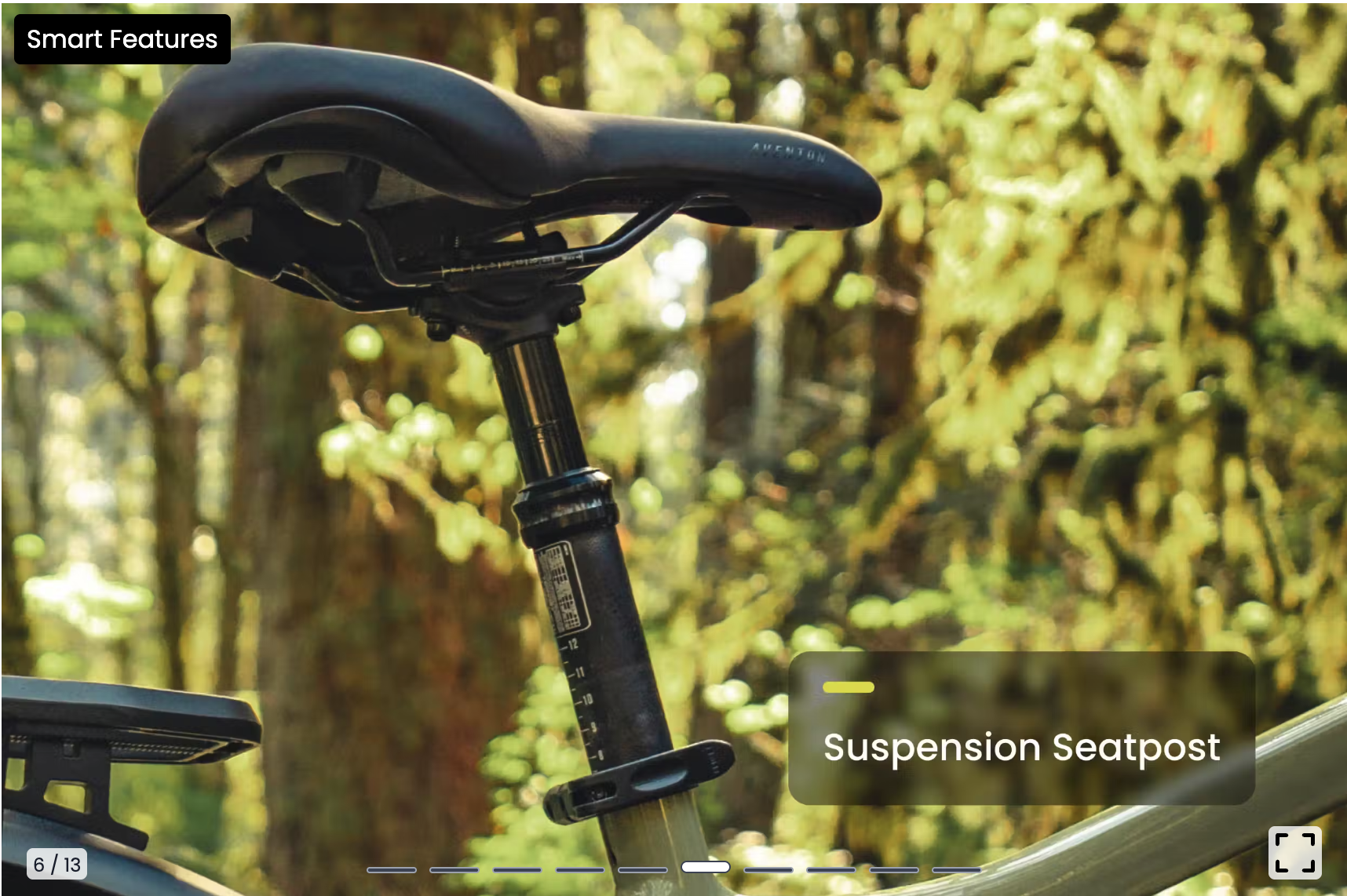

• Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm Travel

• Seatpost Clamp: 34.9mm

• Handlebars: Aluminum 31.8mm, 680mm

• Grips: Aventon Lock on Grips

• Headset: Sealed bearing H887 Peilin 28.6mm 56mm 56mm H18.6mm 7pcs

• Kickstand

• Rear Mount

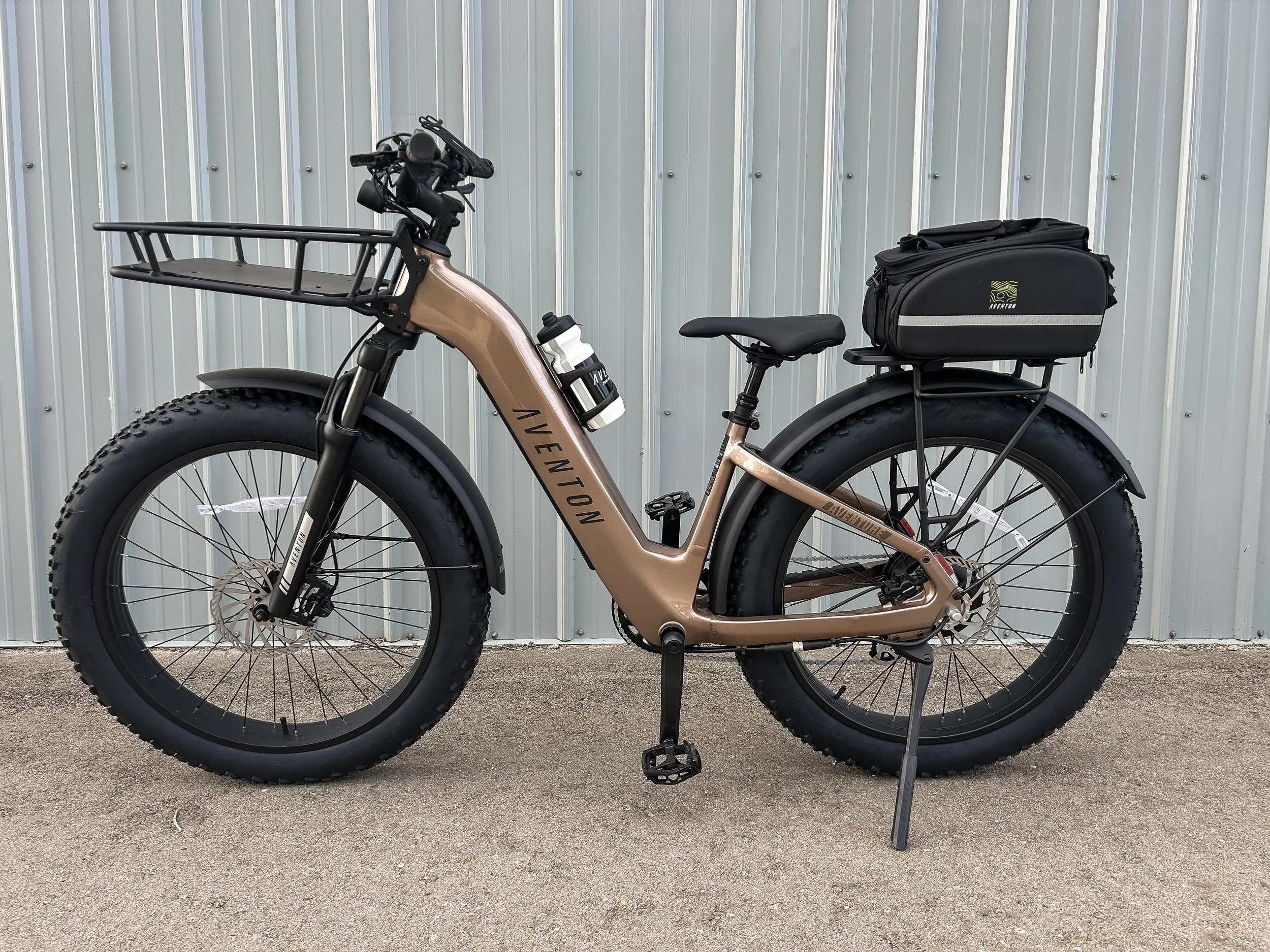

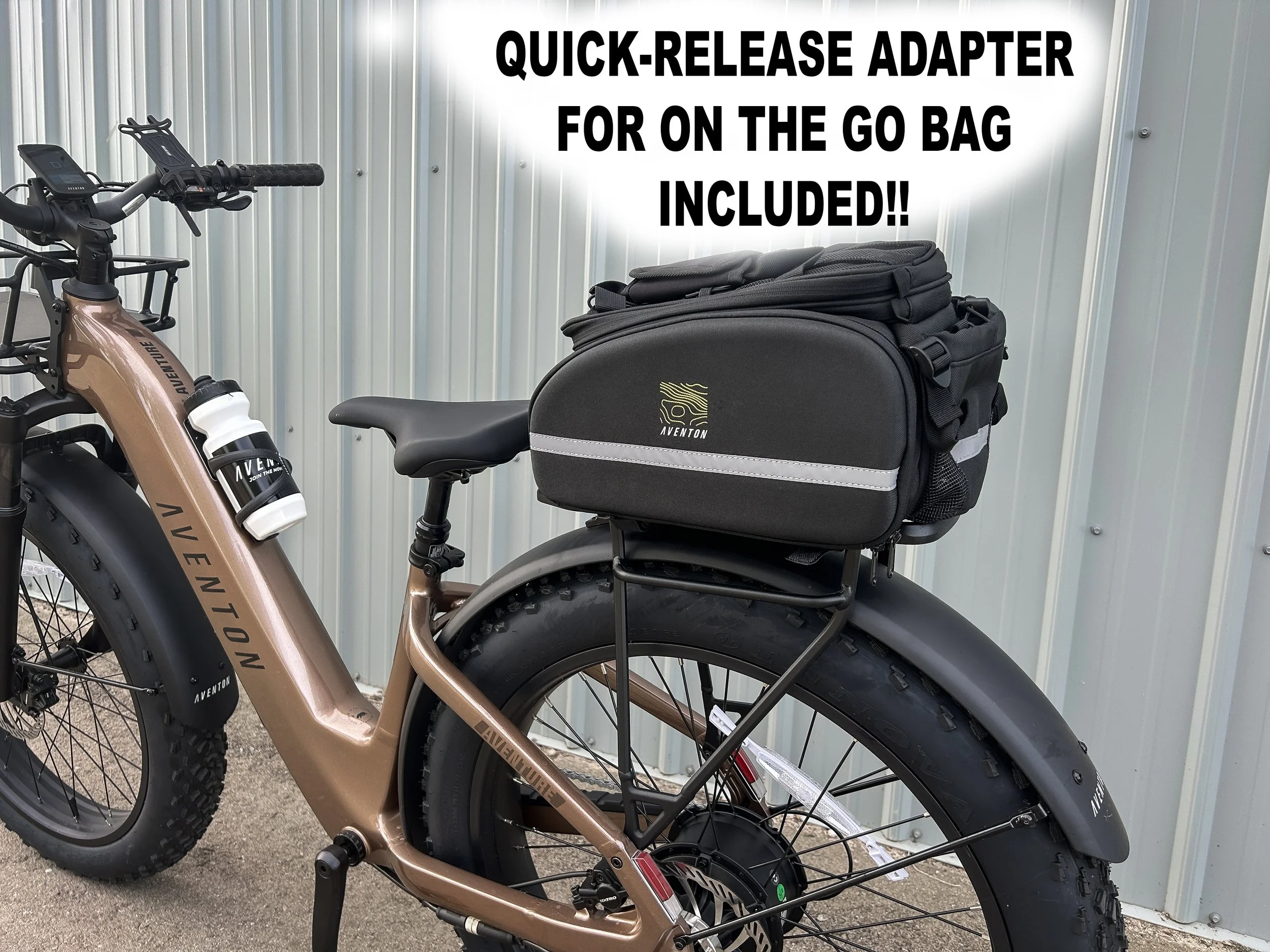

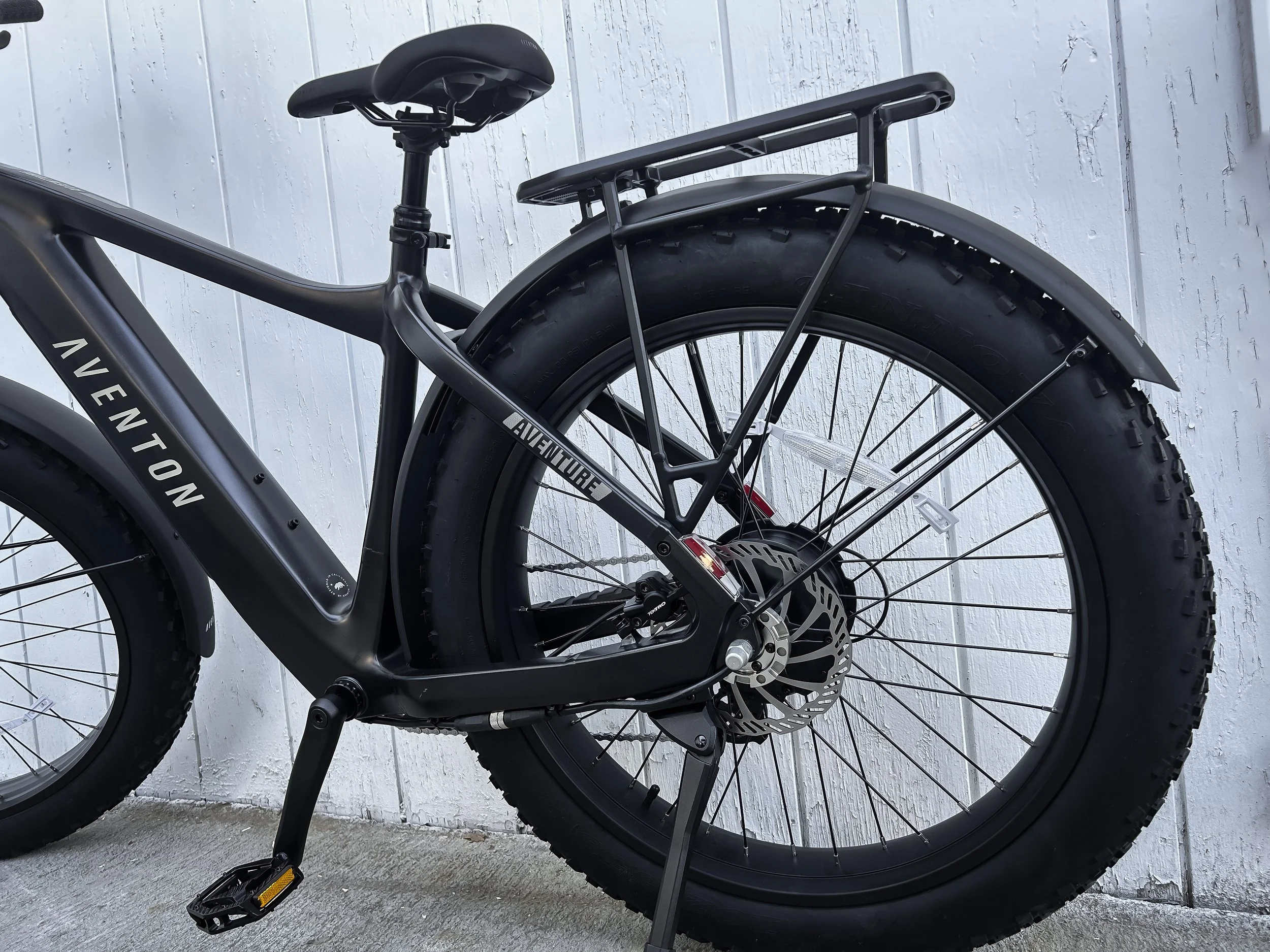

• Rear Rack

• Fenders

Technical Overview The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lb.
