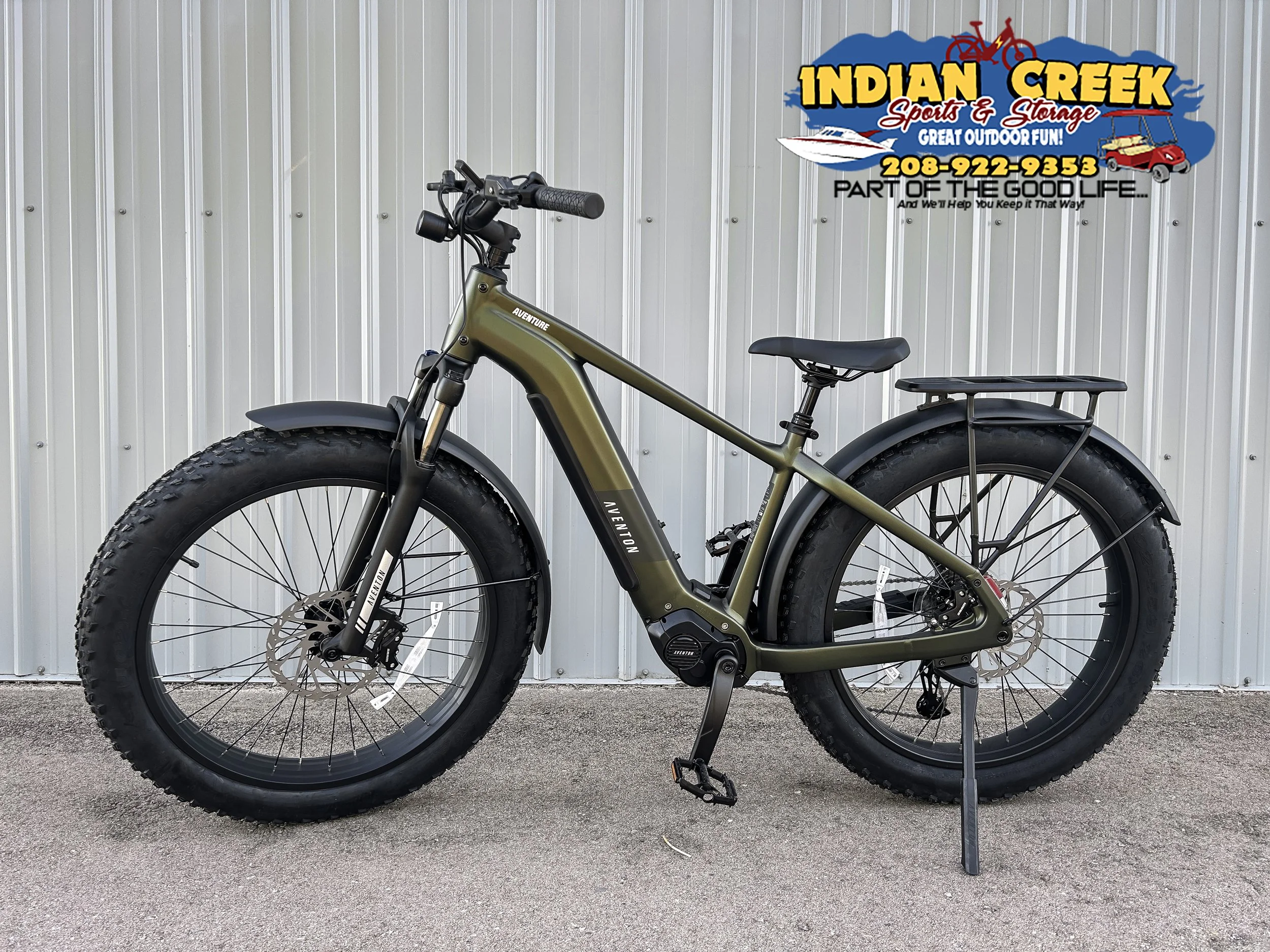

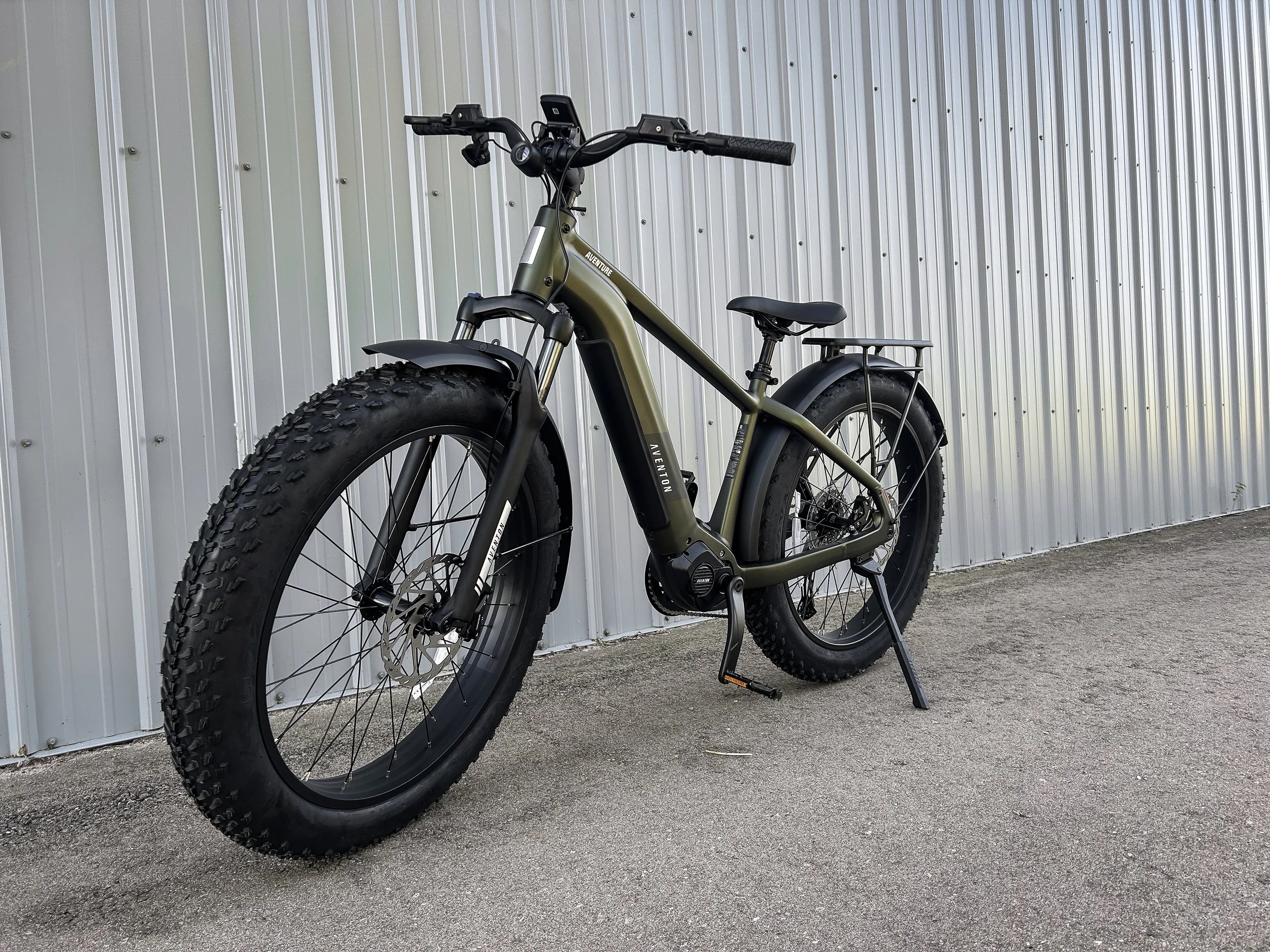

Aventon Avenutre M

• Size: Regular

• Color: Camouflage

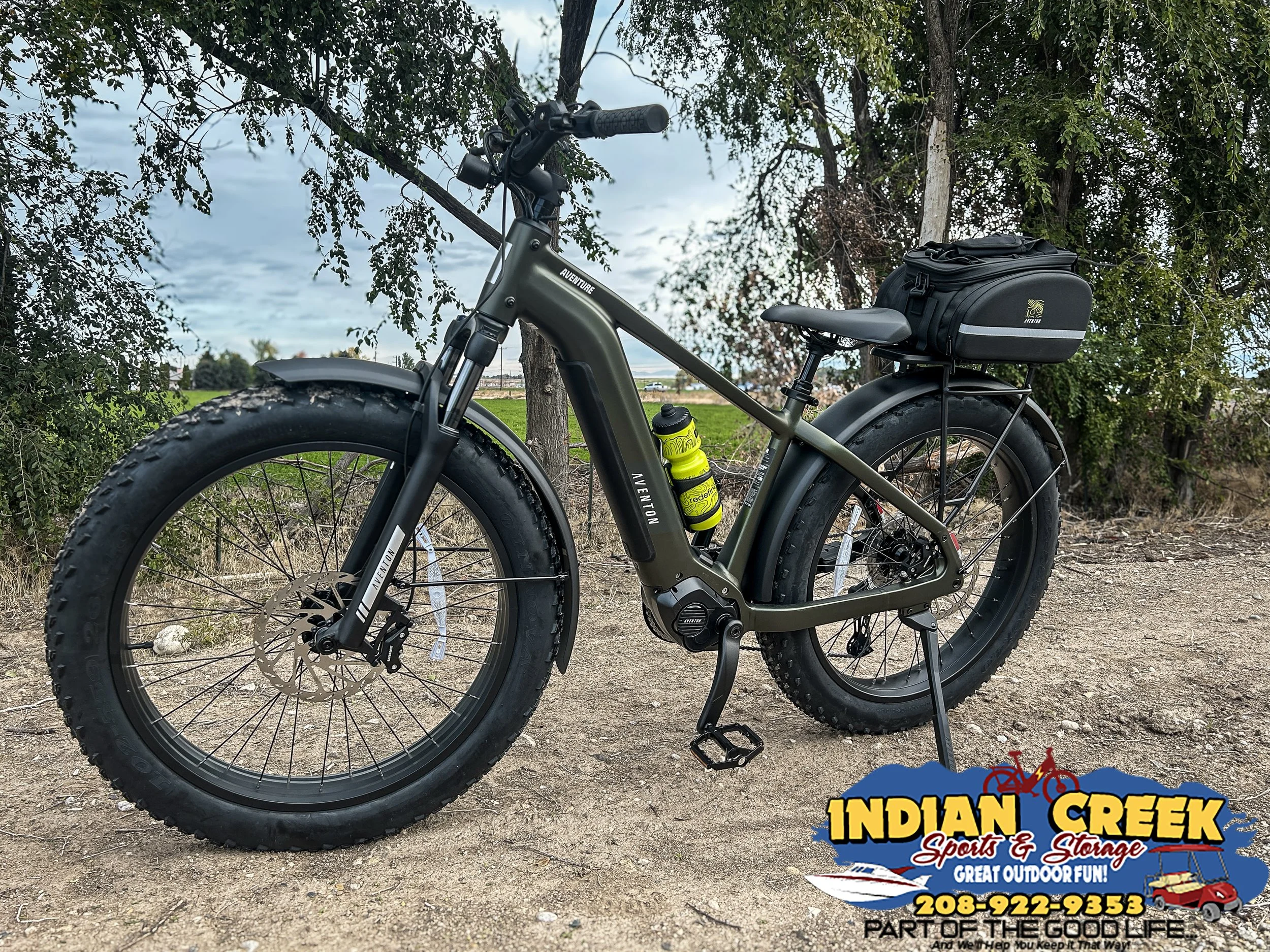

• Rack-Top Bag w/ Quick Release

• Water Bottle Cage

• Weight: 73 lbs

• Total Weight Limit: 400 lbs

• Ebike Class: Class 2 (With Throttle)

• Range: Up to 85 Miles

• Water Resistance: Bike - IPX6 // Motor - IP67

• Battery Safety Certifications: Certified to UL 2271

• Safety Certifications: UL Safety Certified
UL 2849

• Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout

• Rear Spacing: 190mm

• Fork Spacing

• 135mm: Frame

• 6061 Aluminum: Wheelset

• Front Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve

• Rear Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve

• Tires: Inova 26x4.0 Puncture Resistant

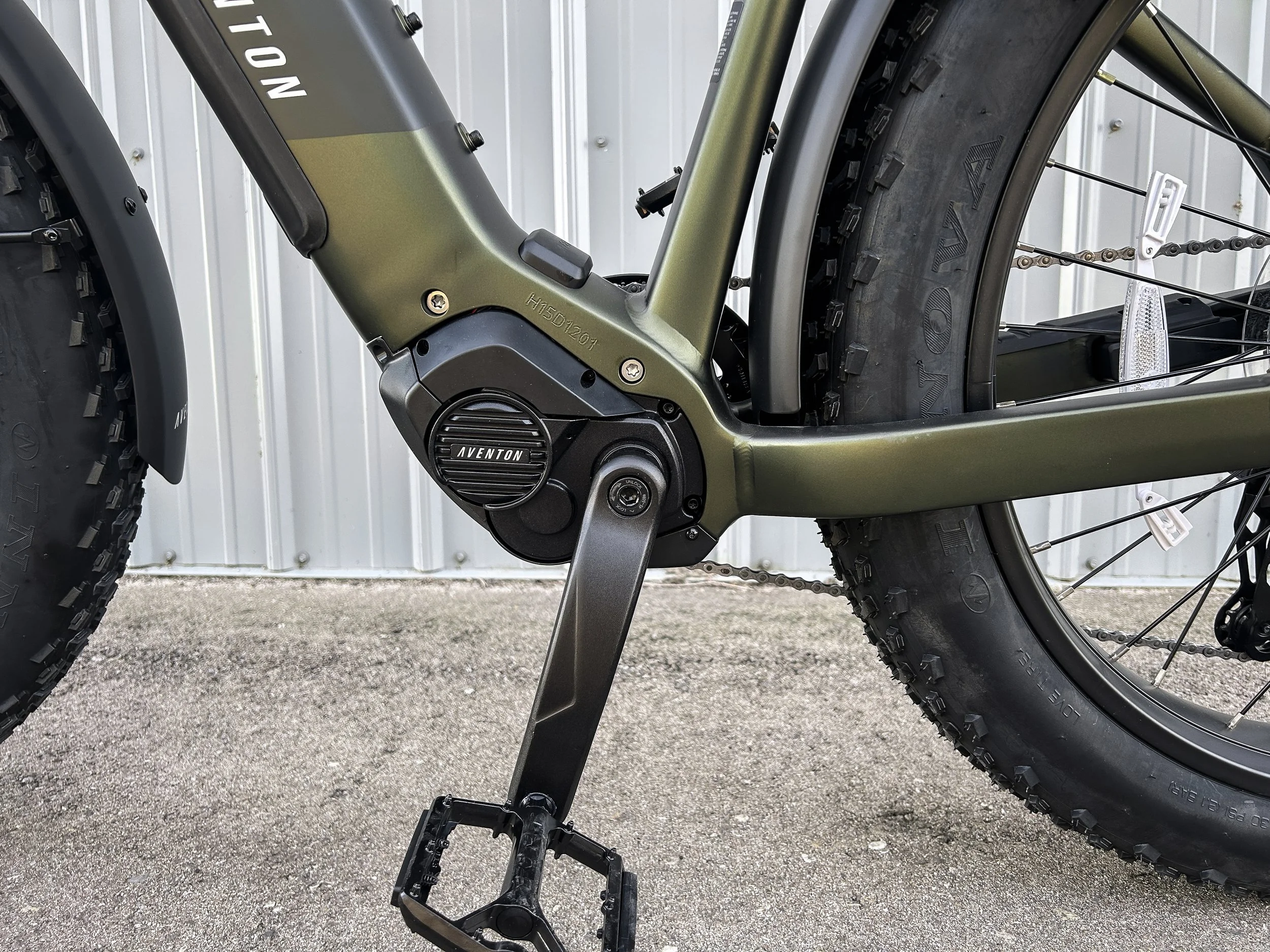

• Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

• Motor Torque: 100Nm

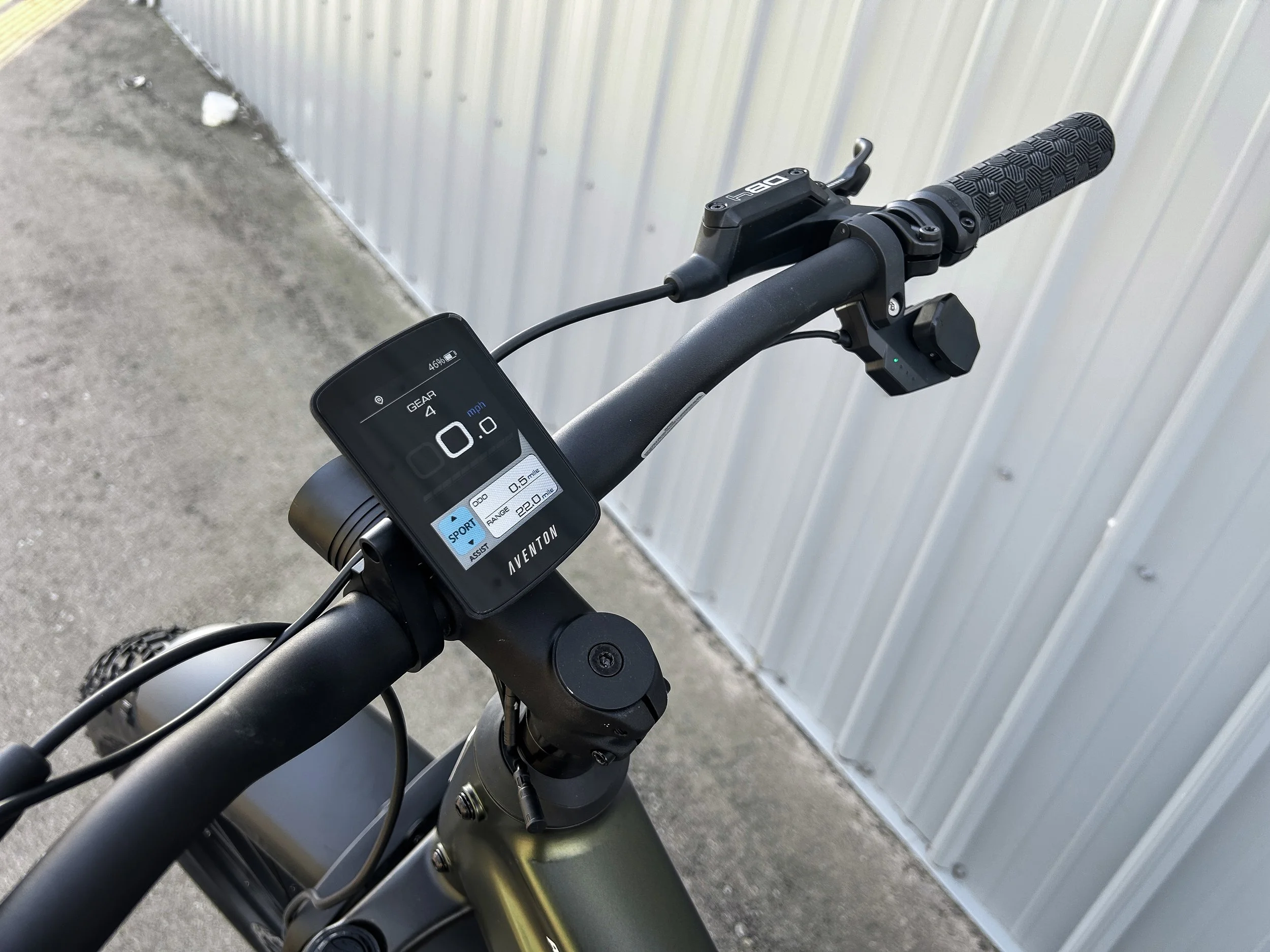

• Display: Aventon BC280

• Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

• Battery Weight: 8.7lbs

• Controller: Integrated in Motor

• Throttle

• Sensors: Double Sided Torque Sensor Integrated in Motor

• Charger: 36V Output: 42V/ 4A

• Charging time from 0% to 100%: 5 hours

• Lights: Integrated Front and Rear Running Lights (no brake lights)

• Front Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff

• Rear Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff

• Front Brake Rotor: Sram G2 200mm 6-Bolt

• Rear Brake Rotor: Sram G2 200mm 6-Bolt

• Rear Derailleur: Shimano Cues 10-Speed

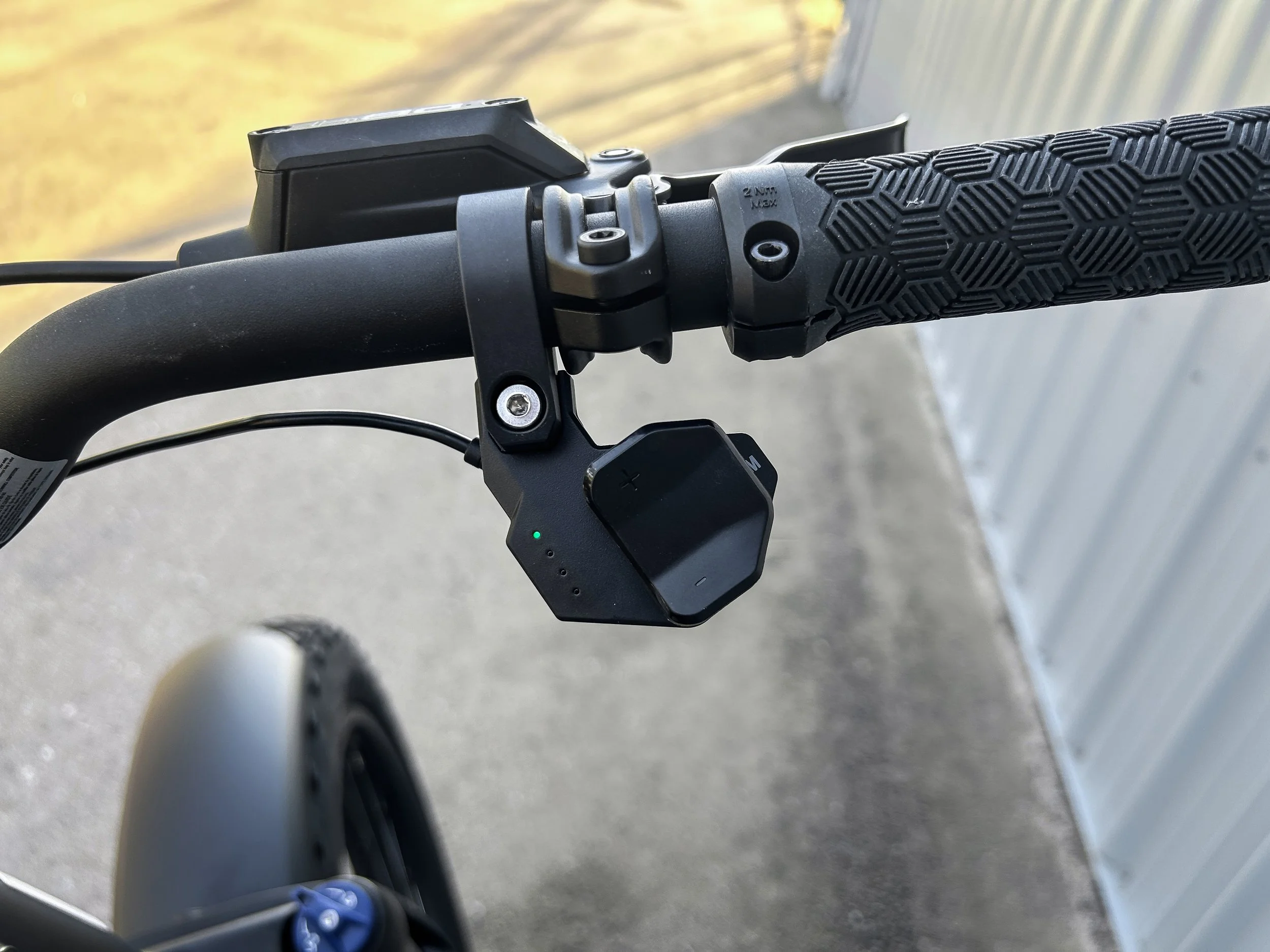

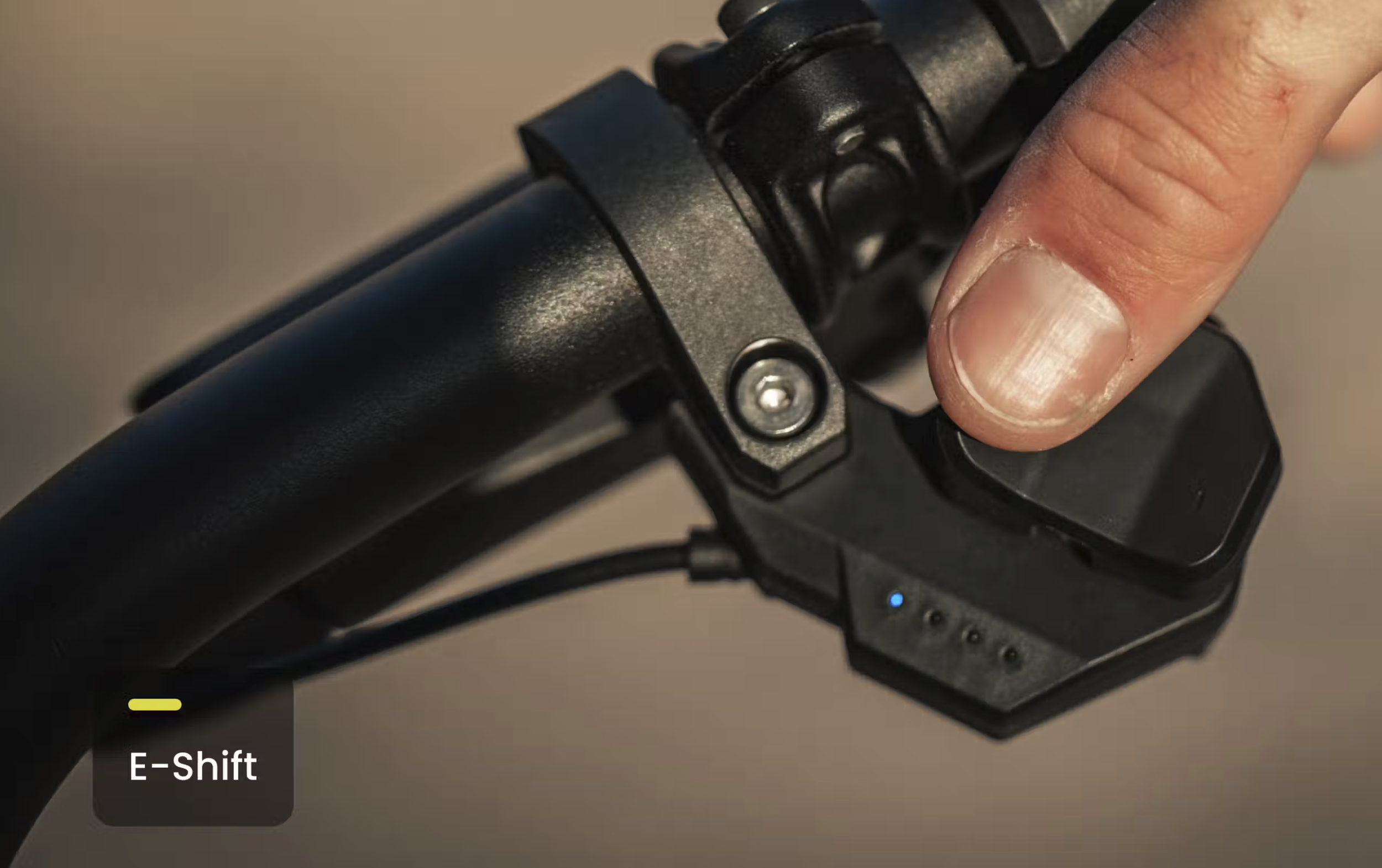

• Shifter: E-Shifter

• Chain: 9/10/11 Speed 124L

• Cassette: Shimano Cues 10-Speed 11-39T

• Chainring: 44T

• Crankset: Aventon 170mm ISIS Splined

• Pedals: 9/16" Alloy Platform

• Aventon Saddle

• Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm Travel

• Seatpost Clamp: 34.9mm

• Handlebars: Aluminum 31.8, 720mm

• Aventon Lock on Grips

• Headset: Sealed Bearing H887 Peilin 28.6mm 56mm 56mm H18.6mm 7pcs

• Kickstand

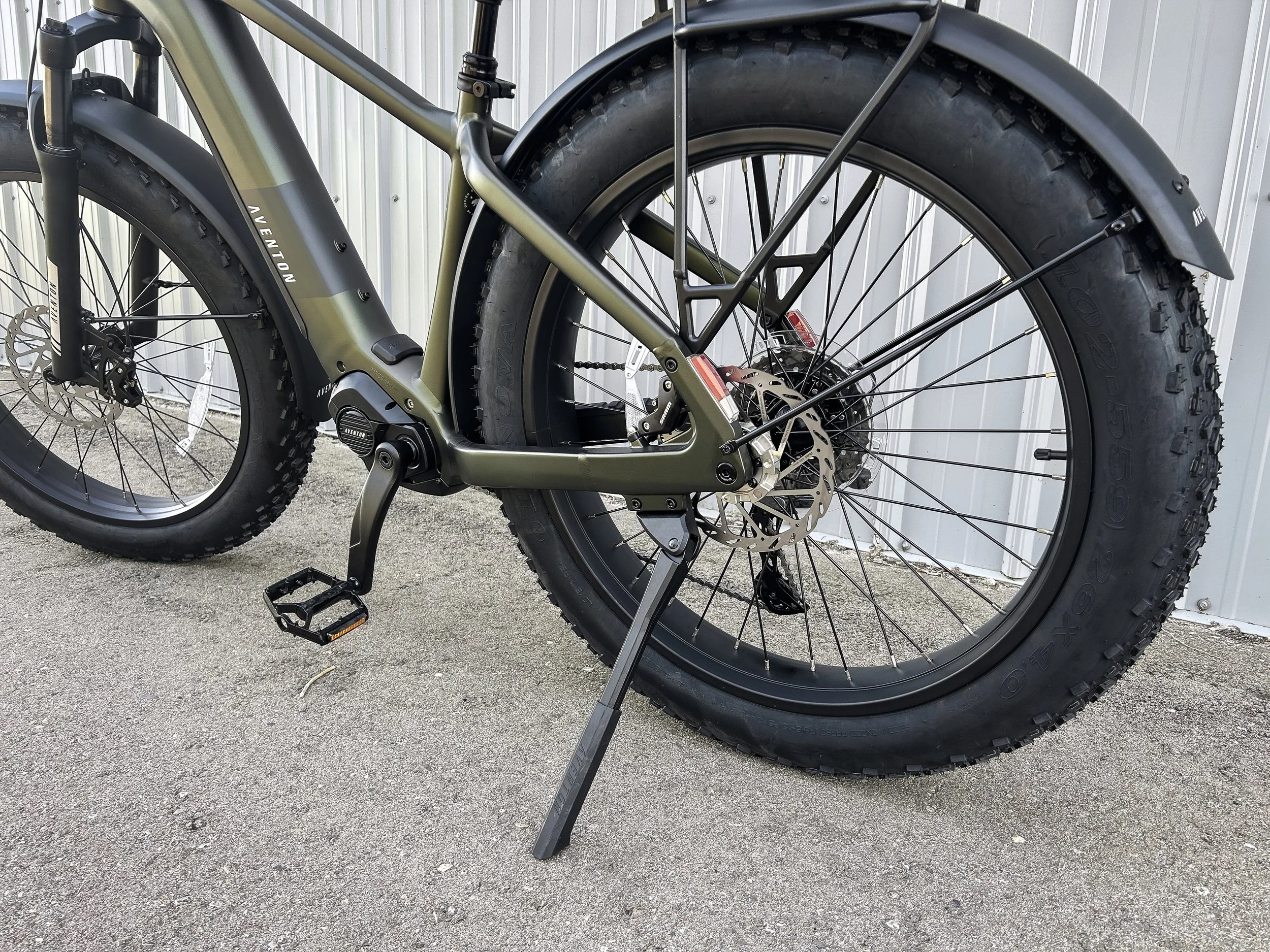

• Rear Rack

• Fenders

Technical Overview Aventure M comes out of the box as a Class I ebike, with pedal assist. An Aventon throttle can be purchased and easily installed on Aventure M to convert to Class 2. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.
