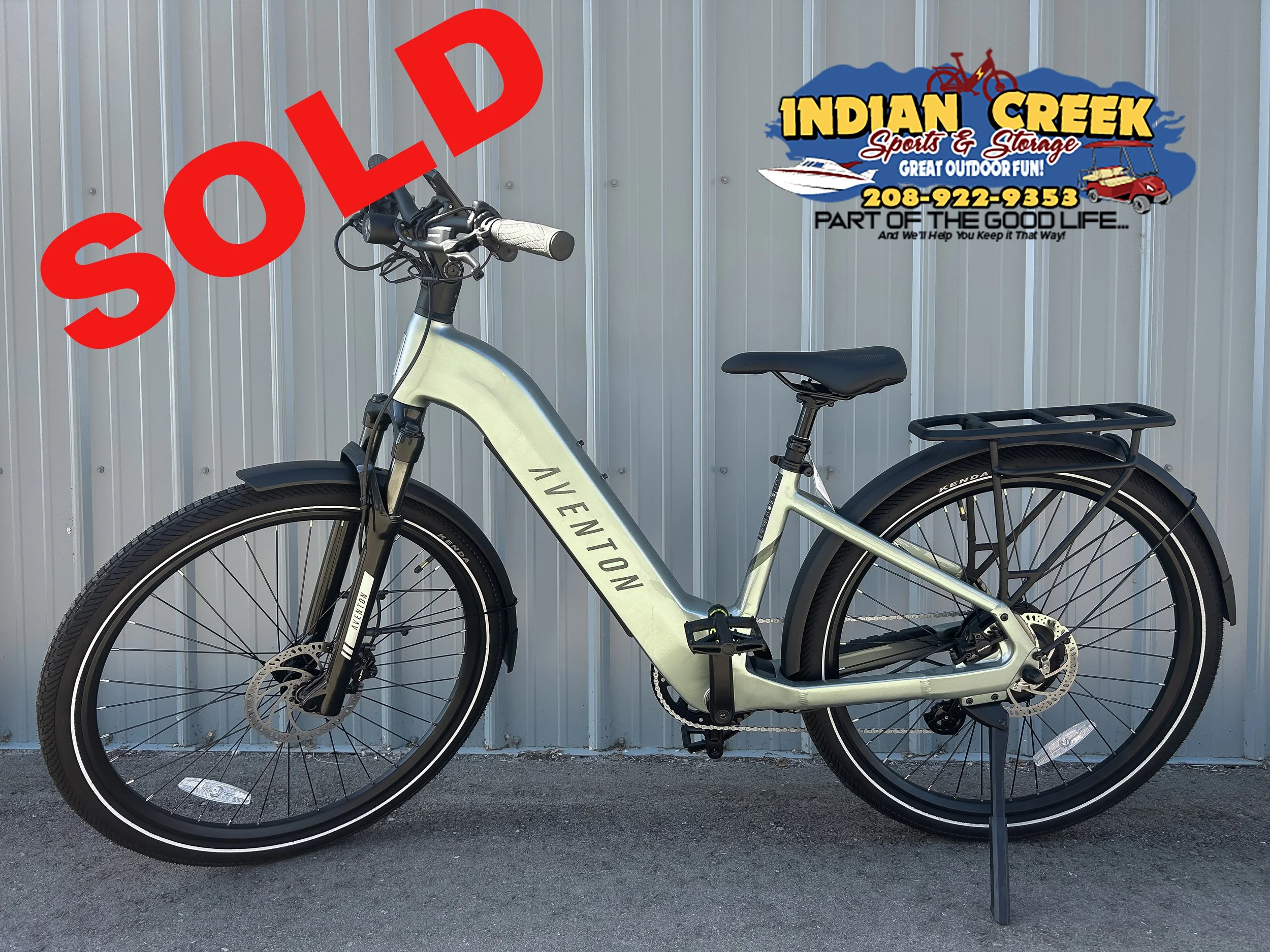

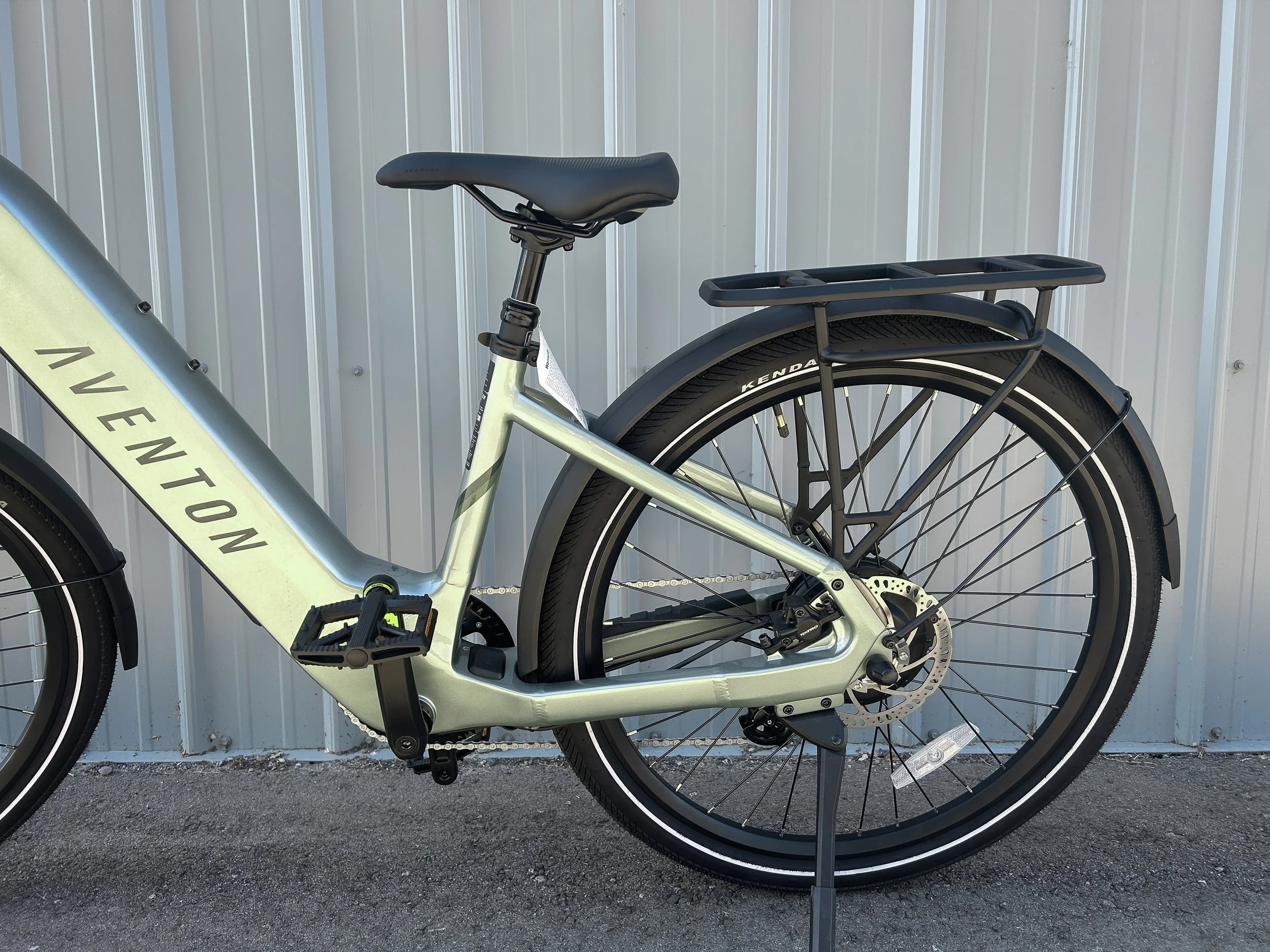

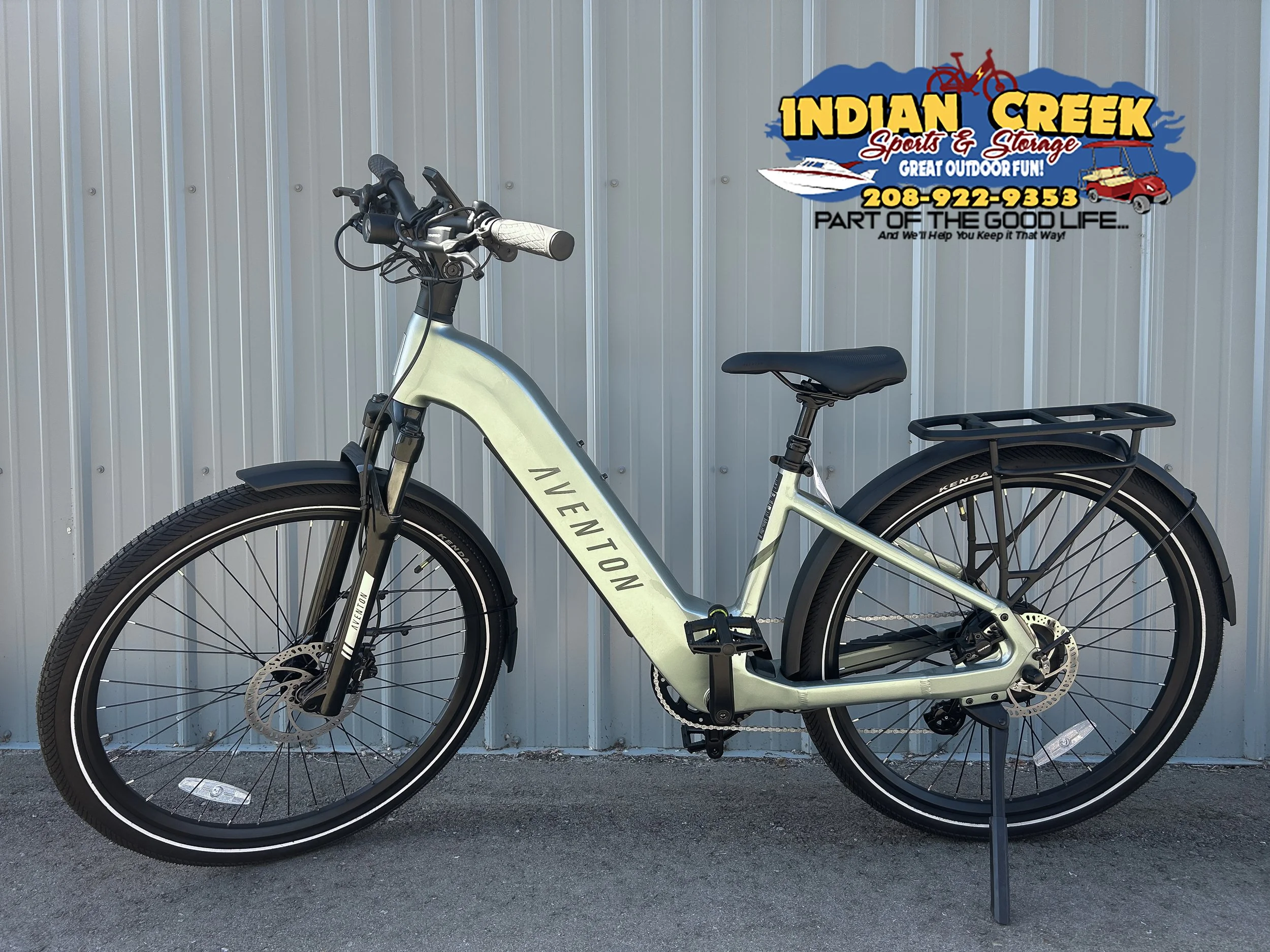

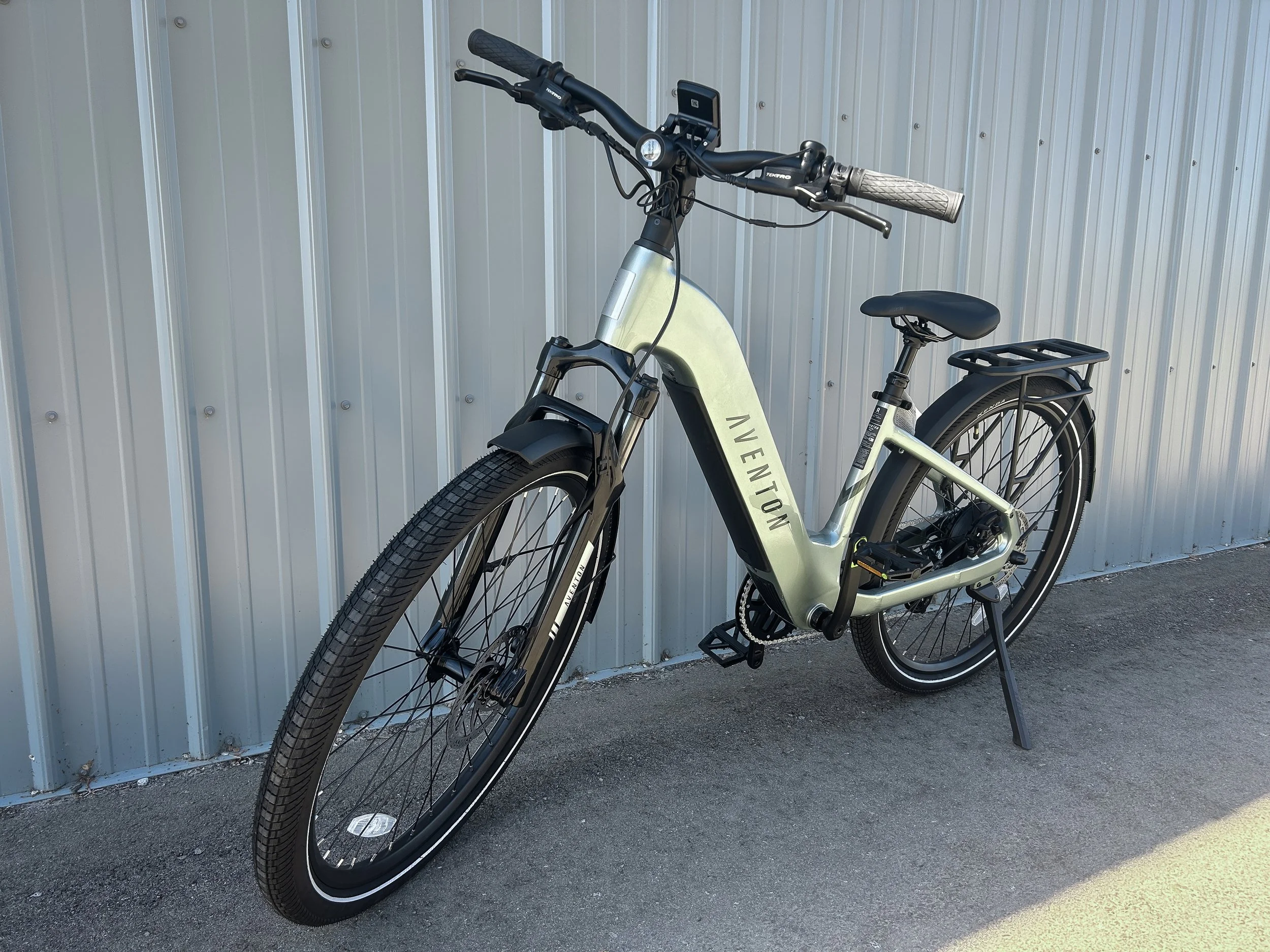

Aventon Level 3 Commuter

• Size: Regular

• Color: Glacier Mint

• Weight: 67lbs

• Total Weight Limit: 300 lbs

• Rider Height: 5'3" - 6'4"

• Class: Class 2

• Water Resistance: IPX4

• Range: Up to 70 Miles

• Battery Safety Certifications: Certified to UL 2271

• Safety Certifications: UL Safety Certified
UL 2849

• Ideal Use: Commuting

• Pedal Assist: 3 Levels (with Ride Tune Customization)

• Frame: 6061 Aluminum, Gravity Cast Front Triangle

• Fork: Aventon Suspension Fork, 80mm Travel, w/ Lockout, Coil Spring. 15x100mm Thru-Axle, 43mm Offset

• Rear Spacing: 142mm

• Fork Spacing: 110mm

• Frame Style: Step-Over

• Front Wheel: 27.5in, 13g, 36hole, Double Wall Aluminum, Thru Axle, Schrader Valve, Black

• Rear Wheel: 27.5in, 12g, 36hole, Double Wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, Black

• Tires: Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

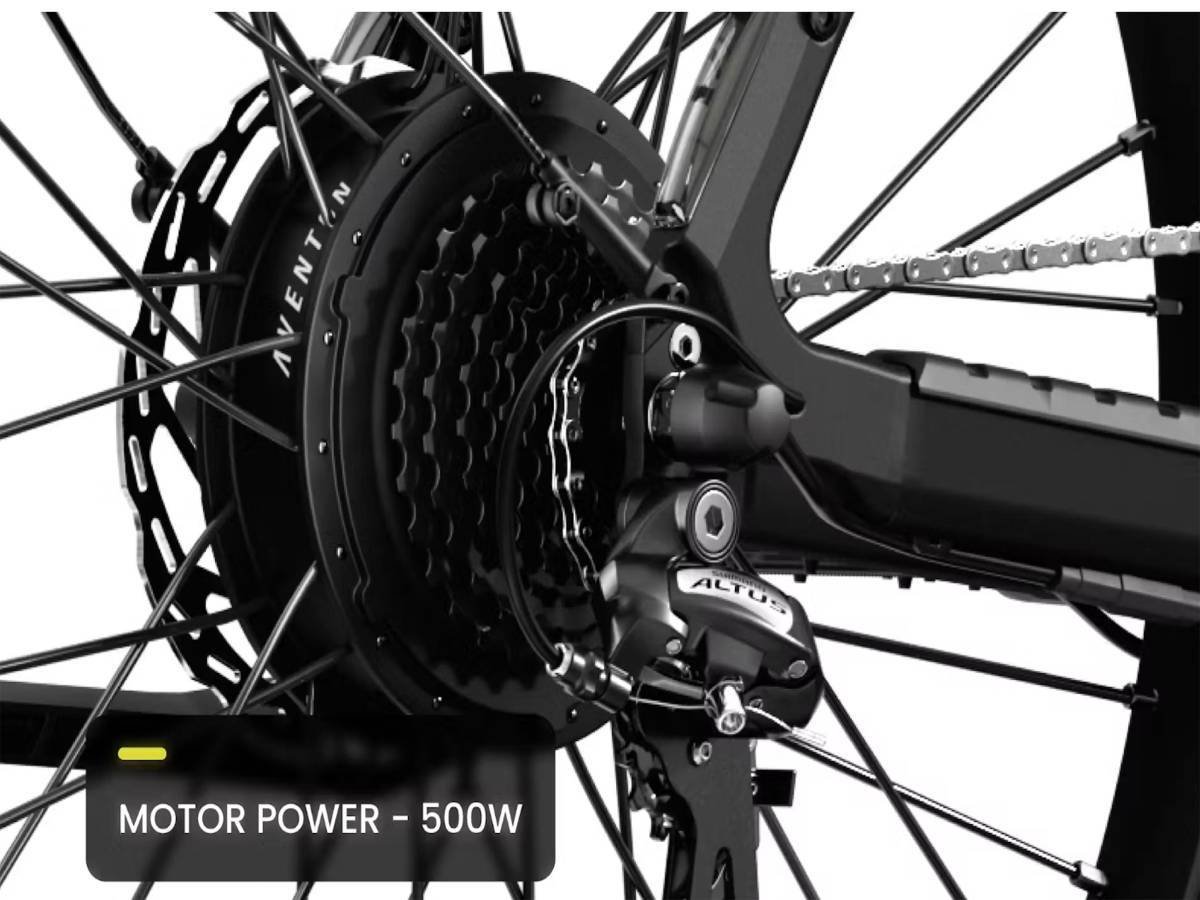

• Motor: 36V, 500W (Sustained), 864W (Peak)

• Motor Torque: 60Nm

• Display: Aventon BC280

• Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 Cells

• Battery Weight: 8.7lbs

• Controller: 36V, 24A

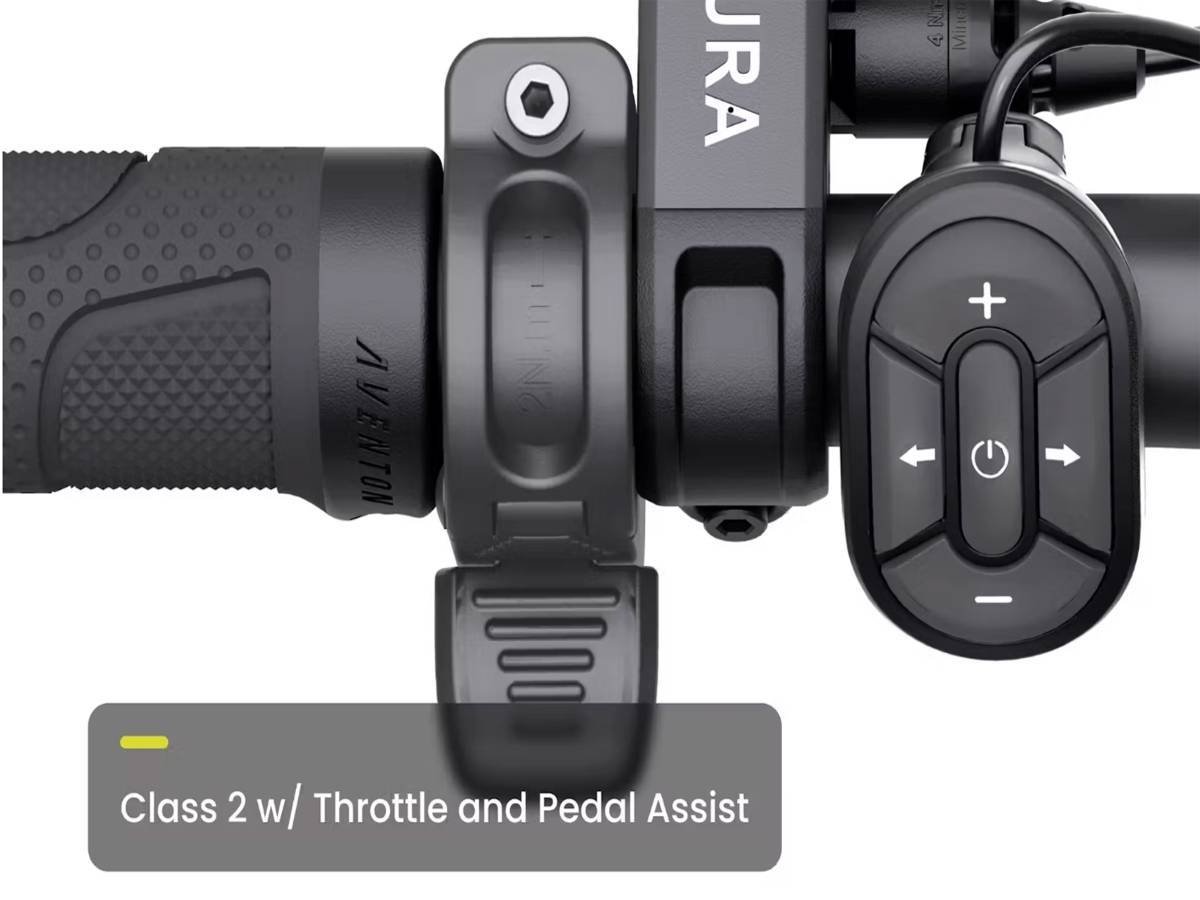

• Throttle: Aventon LH Handlebar Mounted

• Sensors: Double Sided Bottom Bracket Torque Sensor

• Charger: 36V Output: 42V/ 4A

• Charging Time From 0% to 100%: 5 Hours

• Lights: Front and Rear Lights Integrated

• Speed: Class 2

• Front Brake: Magura AT-2 Hydraulic Disc Brake

• Rear Brake: Magura AT-2 Hydraulic Disc Brake

• Front Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

• Rear Brake Rotor: Magura MDR-A 180mm 6 Bolt Rotor

• Rear Derailleur: Shimano Altus RD-M310

• Shifter: Shimano 8 Speed Trigger SL-M315-8R

• Chain: 7/8 speed 120L

• Cassette: 12-32T / 8 Speed Shimano CS HG200-8

• Chainring: 48T

• Chainring BCD: 104

• Crankset: 3pc, 170mm Crank Arm

• Bottom Bracket: Square Taper, Sealed, Double Sided Torque Sensor 83mmx158.5mm

• Pedals: 9/16" Composite Platform

• Saddle: Aventon Saddle

• Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm Travel

• Seatpost Clamp: 34.9mm

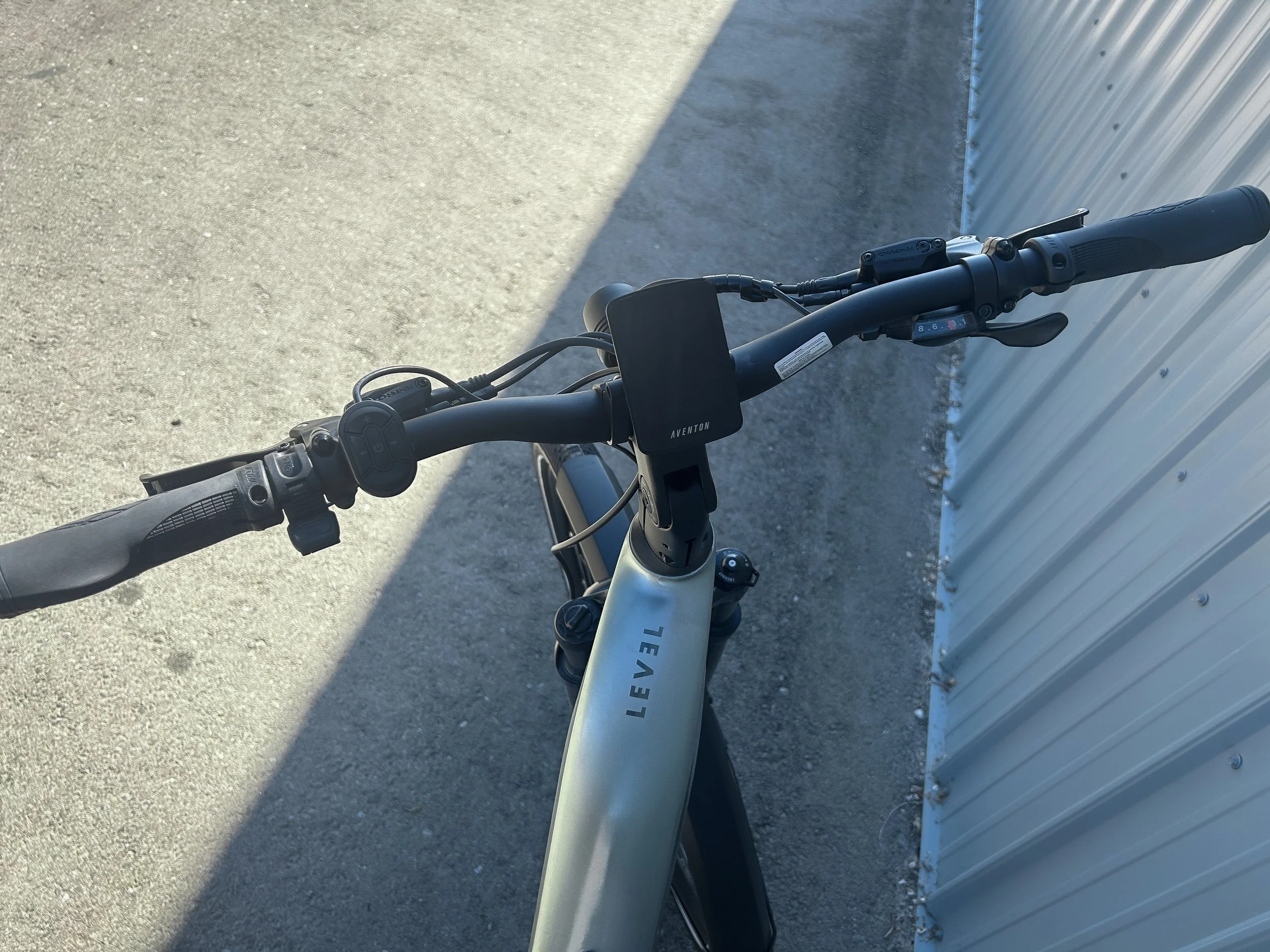

• Handlebars: Aluminum 31.8mm, 680mm

• Grips: Aventon Lock on Grips

• Headset: Sealed Bearing Headset

• Fenders

• Rear Rack

• Rear Rack Weight Limit: 60lbs

The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
